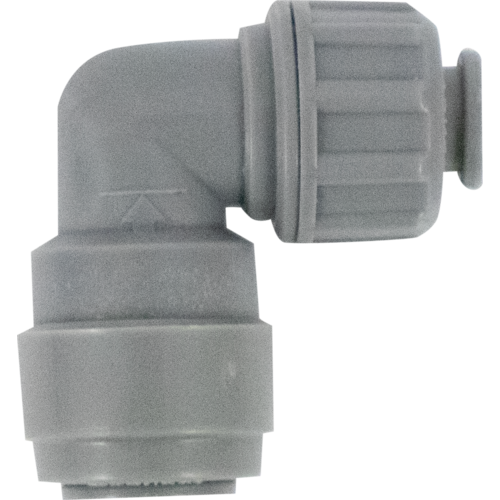

This Duotight elbow is mainly used where a stronger connection is required on a rigid port. One side is a standard 8 mm Duotight connection and the other side is a compression adapted Duotight Screw Lock connection for 6.35 mm (1/4") rigid fittings.
This Duotight elbow fitting is compatible with EVABarrier 8 mm OD Tubing ( D1717
& D1718
).
Duotight offers superior quality when compared to other push-in fittings. Their double EPDM O-ring design provides a more complete and reliable seal, protecting against leaks even when tubing is bent around tight corners. They are suitable for both beverage and gas applications, and are pressure rated to 100 psi. Tubing can be released by simply pushing in the collet and pulling the line out. No need for clamps or cutting lines!
Features:
Insert tubing and firmly push to connect
Easily release tubing by pushing in the collet
Suitable for both gas & beverage applications
Made from food-grade acetal plastic
Double O-rings made from highly chemical resistant EPDM
Locking teeth made from stainless steel
Pressure rated to 150 psi
Temperature rated to 212°F (100°C)
Please note: exposure to chlorine will degrade the acetal plastic and stainless steel these fittings are made from. Do not use in contact with bleach or other chlorinated cleaning chemicals.
